Special Factory Make 22 M Platform Type And Bucket Type Bridge Inspection Vehicle New Product
best seller bridge inspection vehicles bucket type and platform type
With increasing numbers of bridges in the world, safety of bridges becomes a top priority. This needs periodic inspection on all parts of the bridge, which are not easily accessible. These inspections are primarily visual and require hands-on observations in order to check for loose and broken hardware, corrosion, insect damage, and a multitude of other maintenance and safety issues. We offer an two models of Bridge Inspection truck. One is basket model and the other is platform model. Our bridge inspection trucks are Versatile, efficient and lightweight, they can help you with all your bridge inspection and maintenance needs.
Road bridges carrying passengers and vehicles are required a routine inspection every year. Meeting these requirements often involves the use of specialized heavy machinery, such as an under-bridge inspection truck, to gain access. We provide two models of Bridge Inspection truck. One is basket model and the other is platform model. Our bridge inspection trucks are Versatile, efficient and lightweight, they can help you with your bridge inspection and maintenance needs.

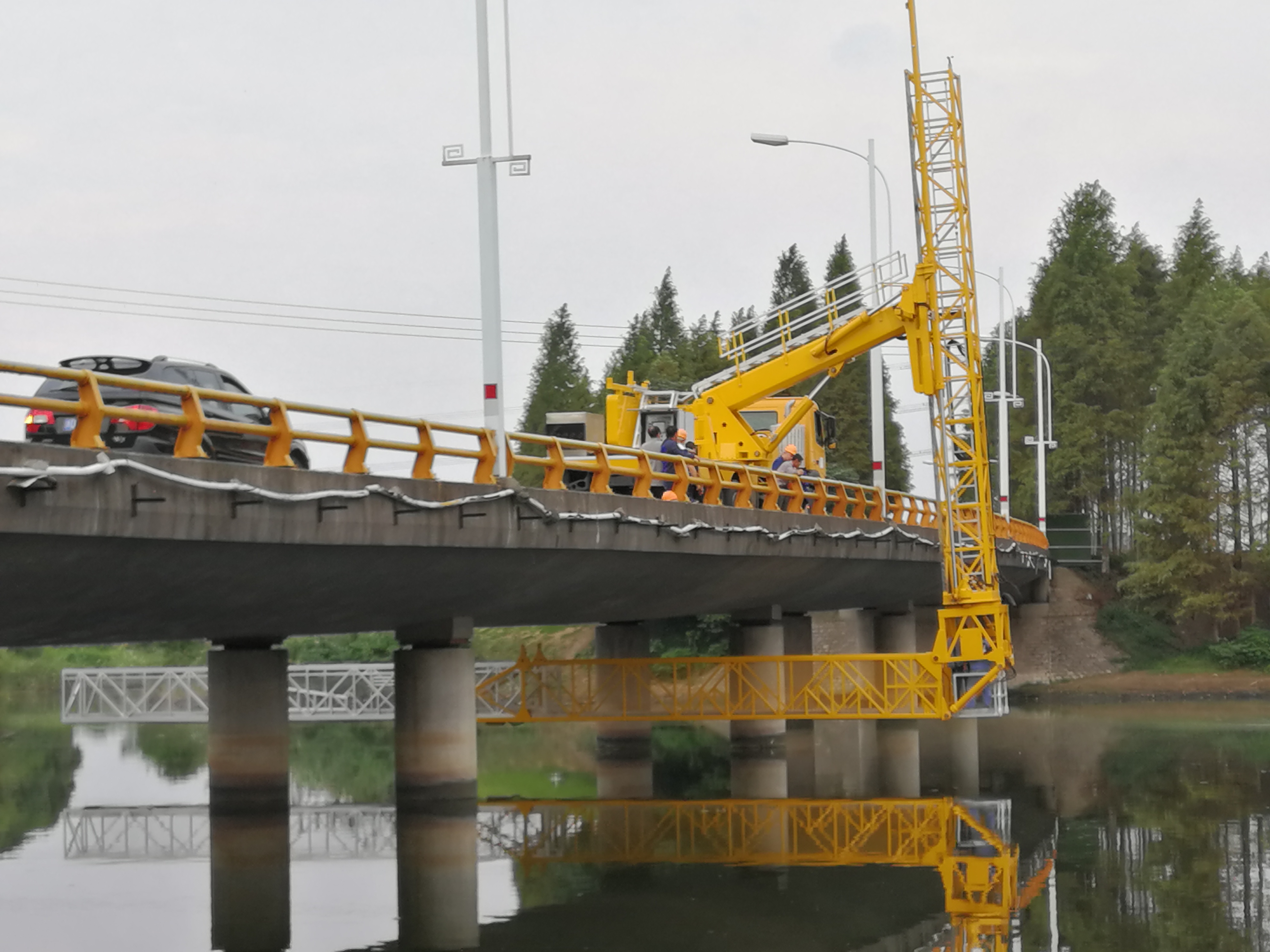

our bridge inspection and maintenance trucks which allow workers to manoeuvre safely into position for hands on inspection and maintenance work. Our bucket type trucks have a basket capable of reaching above, alongside and below a variety of bridge structure types and sizes. The Truck make sure work to be done safely, without interrupting traffic, work within only one traffic lane.
- Specifications:
| Structure type of bridge inspection vehicle | Platform type |
| Max. Horizontal working range | 22M (72’) |
| Max. vertical working depth | 8000mm (26’) |
| Width of work platform | 1080mm |
| Max. load on Truss platform | 800KG (1763lb) |
| Max. load on telescopic Truss platform | 400KG(881lb) |
| Max. Width of sidewalk spanning | 3500mm (9.8’) |
| Max. height of guardrail spanning | 4500mm (14.5’) |
| The 1st rotation angle scope | 0~90° |
| The 2nd rotation angle scope | 0~1800 |
| Max. amble travelling speed | 15m/min |
| Operation Mode | Wireless Remoter , Panel, Emergency manual |
| Drive system | Two drive system: PTO and gasoline generator |
| Amble self travelling device | Transfer case instead of amble motor |
| Chassis | Volvo FM420 84RB |
| G.V.W | 31000KG |
| Overall dimensions | 12560(L)×2500(W)×4000 (H)mm |
3. MBIU working video on youtube
Platform type MBIU: https://www.youtube.com/watch?v=IyyTuEgFubo&feature=youtu.be
Bucket type: https://www.youtube.com/watch?v=dXxARhbfV8I&feature=youtu.be
